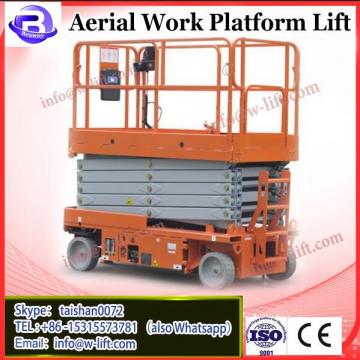

Electric Hydraulic Mobile Street Light Lift with CE
- aerial work platform lift
aerial work platform lift
- China
- CE
- One set Electric Hydraulic Mobile Street Light Lift with CE
- [email protected]
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 164
- Shandong Loyal Lift Machinery Co.,Ltd.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Electric hydraulic mobile street light lift with CE
Application:
The street light lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Product List:
Model |
Capacity |
Table size |
Max height |
Work height |
Total dimension |
Net weight |
SJY0.3-4 |
300Kgs |
1500×750mm |
4m |
5.7m |
1850×900×1900mm |
400Kgs |
SJY0.3-6 |
300Kgs |
1500×750mm |
6m |
7.7m |
1850×900×1970mm |
650Kgs |
SJY0.3-8 |
300Kgs |
1650×1000mm |
8m |
9.7m |
2100×1200×2460mm |
1200Kgs |
SJY0.5-8 |
500Kgs |
1980×1220mm |
8m |
9.7m |
2500×1550×2380mm |
1400Kgs |
SJY0.8-8 |
800Kgs |
2000×1220mm |
8m |
9.7m |
2600×1550×2640mm |
1700Kgs |
SJY0.3-10 |
300Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1500Kgs |
SJY0.5-10 |
500Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1600Kgs |
SJY1.0-10 |
1000Kgs |
2220×1220mm |
10m |
11.7m |
2820×1720×2850mm |
2380Kgs |
SIY0.3-12 |
300Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2580Kgs |
SIY0.5-12 |
500Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2780Kgs |
SJY1.0-12 |
1000Kgs |
2600×1500mm |
12m |
13.7m |
3200×2015×3090mm |
3580Kgs |
SJY0.3-14 |
300Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3000Kgs |
SJY0.5-14 |
500Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3200Kgs |
SJY0.3-16 |
300Kgs |
3230×1600mm |
16m |
17.7m |
3700×2000×3030mm |
3900Kgs |
SJY0.3-18 |
300Kgs |
3230×1600mm |
18m |
19.7m |
3700×2000×3250mm |
4500Kgs |
SJY0.3-20 |
300Kgs |
3230×1600mm |
20m |
21.7m |
3700×2000×3450mm |
5100Kgs |
Parts Showing:
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above work platform.
3) The limit switch system helps the street light lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the street light lift are passed 1.2 times loading test before leaving factory.
Our Services
1) We can design the customerized street light lift as per your requirement.
2) The most suitable street light lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
Contact us:
aerial work platform lift can overhang operation ,can overcome some obstacles or in a point lifting for more point work .Electric Hydraulic Mobile Street Light Lift with CE can rotate 360 degrees ,load capacity big, available to two people for working at the same time and carry some tools; mobile flexible ,transfer work place convenient ,appearance beautiful.
FDGBGDGD
aerial work platform lift are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, Electric Hydraulic Mobile Street Light Lift with CE workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.
HFDJHBVFD
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.aerial work platform lift is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial Electric Hydraulic Mobile Street Light Lift with CE working, more convenient and quick.
