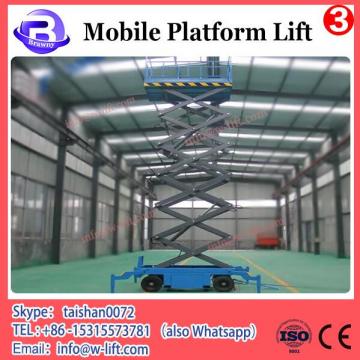

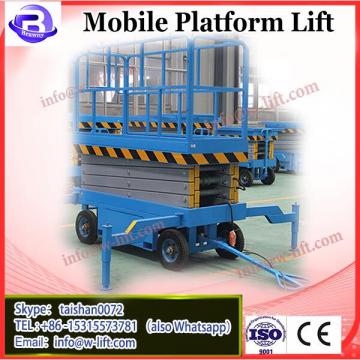

Small home mobile scissor lift platform
- mobile platform lift
mobile platform lift
- China
- CE Certificate
- One set Small home mobile scissor lift platform
- [email protected]
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 169
-
Shandong Loyal Lift Machinery Co.,Ltd.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Product Description
Product Application
Small home mobile scissor lift platform is the professional high-altitude operation equipment and widely used for the installations maintenance, high working capacity, most spacious platforms to load several people to work on, moved by tow or push, high strength steel material, going up and dropping down stably, operated easily and few faults.
Main Features
A. In special circumstance, the scissor lift can install explosion-proof electric equipment
B.Antiskid upper platform plate to prevent slipping, it is enough safe when opertor works on platform.
C.Overload protective organization to ensure the machine not lift up when beyond its rated capacity.
D.The scissor lift is equipped anti explosion valve to prevent the platform dropping suddenly You can open the manual dropped valve to lower the platform to the home position.
E.Spillover valve: It can prevent high pressure when the machine moves up,adjust the pressure.
F.Made of high intensity manganese steel tubes, never deformed.
G.Special made casting steel hinge ear, well wearable , with a long serve life.
| models | lift height(m) | loadcapacity(kg) | overall sizes(mm) | table sizes(mm) | weight(kg) | power(kw) |
| SJY0.3-4 | 4 | 300 | 1850*1000*950 | 1500*750 | 400 | 2.2 |
| SJY0.3-6 | 6 | 300 | 1850*1000*1150 | 1500*750 | 650 | 2.2 |
| SJY0.3-8 | 8 | 500 | 2050*1280*1650 | 1650*1000 | 1200 | 2.2 |
| SJY0.8-8 | 8 | 800 | 2050*1280*1650 | 1650*1000 | 1700 | 2.2 |
| SJY0.3-10 | 10 | 300 | 2600*1550*1450 | 2100*1200 | 1500 | 2.2 |
| SJY0.5-10 | 10 | 500 | 2600*1550*1450 | 2100*1200 | 1600 | 2.2 |
| SJY0.3-12 | 12 | 300 | 2880*1900*1780 | 2550*1500 | 2480 | 2.2 |
| SJY0.5-12 | 12 | 500 | 2880*1900*1780 | 2550*1500 | 2780 | 2.2 |
| SJY1.0-12 | 12 | 1000 | 2880*1900*1780 | 2550*1500 | 3580 | 3 |
| SJY0.3-14 | 14 | 300 | 3600*2080*1860 | 2550*1500 | 3000 | 2.2 |
| SJY0.5-14 | 14 | 500 | 3600*2080*1860 | 3000*1600 | 3200 | 3 |
| SJY0.3-16 | 16 | 300 | 3700*2000*3250 | 3200*1600 | 3900 | 3 |
| SJY0.3-18 | 18 | 300 | 3700*2000*3250 | 3230*1600 | 4500 | 3 |
Pls tell us the following, then we will send our exact quotation and design drawing to you as-ap.
· Max platform height?
· Rated capacity?
· Power?
Detailed Images
Machine Parts
Hydraulic station
Main Features
Control button, can control the machine rises or falls
Machine Parts
Pneumatic tyre
Main Features
Supporting leg
Our Service
Pre-Sales Service
We guarantee that all products in one hour before packaging test, after 100% qualified for packaging.
After-Sales Service
A.Technical supports and suggestions before you order a machine according to your work place.
B. Professional opertion instruction of the machine.
C.12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
D.24-hour technical support by emails, calling or videos.
We are a professional manufacturer of kinds of Hydraulic Lift Platform in China. Welcome to visit our website www.scissorlift.cn for more details.
| Packaging | |
| Size | 2900mm*2000mm*1880mm |
| Weight | 3.68T |
| Packaging Details |
The normal package is plywood case (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 2900mm*2000mm*1880mm |
| Weight | 3.68T |
| Packaging Details |
The normal package is plywood case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
-Wide chassis makes the lower part of the Equipment which can bear the load balance to enhance stability.
-355/55D625 Solid Tyre, Small home mobile scissor lift platform can keep stable not only in a variety of complex conditions but also enhance the ground friction then mobile platform lift is more stable in operation and climbing easier.
-mobile platform lift The steering system adopts double oil cylinder and Hydra steering system with 40Cr steering linkage to ensure the same direction.
-Floating leveling device will start automatically when the device encountered under the condition of uneven groundto ensure the balance of equipment Small home mobile scissor lift platform with slope of 6 degrees then strengthen the safety and adaptability.
DFGXSDFGBA
-360°continuous rotationwith 50Cr rotary support
-Emergency safety pump. mobile platform lift The operator can use emergency safety pump to fall safelywhen the equipment is working at high altitude which can not be down.
-Constant pressure pump of Danfoss USA or Rexroth Germanit avoid oil leakage caused by gear pump damage in long -term construction
-Small home mobile scissor lift platform of centralized electric control box is used to ensure the safety of equipment operation
-Ground control console and platform control console the former has a large screen display with self diagnostic screen without connected mobile platform lift to the computerthen customers can easily understand the calibration status of equipment and parameters which is convenient debugging and testing.
-Controller of IFM Germany can enhance system stability
-Turntable safety lockto avoid the damage in the transport mobile platform lift and maintenance of arm rotation
-Swing-out engine bracket - provide the world industry closest to the engine design easy maintenance and repairs.
-Glass fiber Small home mobile scissor lift platform steel cover make the whole equipment nice and durable
