Product Description

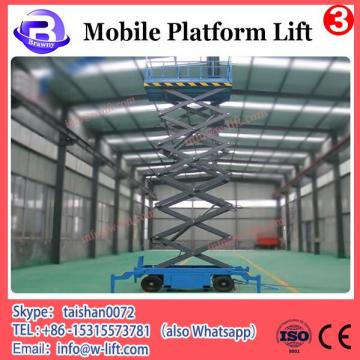

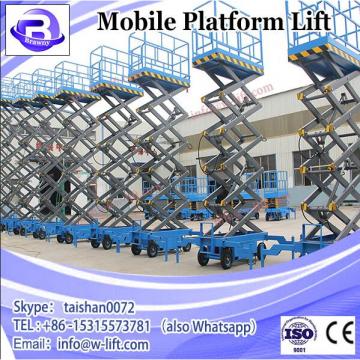

JHC Self Propelled Mobile Hydraulic Scissor Platform Electric Lift Table
Product Description
Introduction to Lift Table:
Lift Table, in general, are powered by diesel for rough terrain applications, or electric-powered, zero-emission versions with non-marking tyres for indoor use or sensitive environments. However, advancements in technology have made possible dual-powered Scissor Lift China powerful enough for rough terrain use yet also suitable for sensitive environments. For example, JIANHGE GTJZ series range of Mobile Scissor Lift operate on battery power and offer a longer runtime, but can be equipped with an on-board diesel generator that kicks in to recharge the batteries on worksites where exhaust is acceptable.
What it can do for you:
Thanks to the exceptional stability, large platforms, high capacities and heights Cheap Scissor Lift can reach, Jianghe’s range of Scissor Lift China allow more workers, more tools and more materials to be lifted to height safely, efficiently and cost-effectively.
Speak to us at Sales & Service to ensure you have the right Jianghe Cheap Scissor Lift for your specific applications, so you can harness all the many safety, productivity and time-saving benefits of using a Cheap Scissor Lift.
Technical Data
Product Details
Main Features for Lift Table:
- Zero-emission electric operation, energy-saving, environmentally-friendly, less noise
- Front-wheel drive and zero inside turning radius
- 0.9 m roll-out platform extension
- Automatic 25 amp battery charger
- Proportional controls for drive functions
- Multiple disc brakes provide smooth deceleration
- Drive speed interlock limits speed while elevated
- On-board diagnostics for easy troubleshooting
- Emergency stop at both platform and ground controls
- Solid, non-marking tires
- AC power to platform
- Gradeability applies to driving on slopes
- Ideal for maneuvering in tight spaces
- excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces
Details for Lift Table:
1.quiet and excellent mobility
Mobile Scissor Lift uses storage battery as the power source, making low noise and no emission while working. It features quiter, cleaner operation for a variety of environments, such as office buildings, shopping malls, hotels, schools and etc.Zero-radius turning system and compact body making up-down, left-right, forward-backward,turning, movements easily operated by one operator.
2.Gradeability
Mobile Scissor Lift offer up to 30% gradeability while driving on slopes with safety protection.
3.Foldable guardrail
The guardrails of Mobile Scissor Lift are foldable or dismountable, and can reduce the height of the whole machine.,which facilitates the transportation and enables it go through small openings and operate in small space.
4.Extension deck
The Scissor Lift China can extend 900mm on one side, enlarging the whole aerial working space.
5.Solid non-marking tire
The small solid non-marking tires make the Mobile Scissor Lift work flexibly without any damage to the ground.
6.swing-out tray
The trays in both sides of the chassis are designed to be swung out, making the maintenance, inspection, replacement of hydraulic oil tank and other components more convenient.
7.control box & On-board diagnostic system
The control box is flexible to mount and dismount, with this control box design, operating on the platform and on the ground are available.
8.hydraulic motor
The hydraulic motor, driving with oil inlet pipe and outlet pipe ,supporting the 2 front wheels to drive to and fro, making the steering more flexible.
9.Automatic pothole protection system
This design ensures the life safety of the operator which working on the tilt or uneven ground in intelligent protection condition.
10.proportional controls
The proportional controls feature driving shifting between high speed and low speed, reducing the wire harness and energy losses.
Main Components for our Lift Table:
our Mobile Scissor Lift are all with international famous brands components to guaratee the stabilities and excellent performance of our man lifts.
1.Drive motor White(USA)
2.Brake White(USA)
3.Manual platform lowering valve White(USA)
4.Hydraulic valve blocks Doyle Pacific
5.Manual platform lowering pump White(USA)
6.Power unit Bucher(Germany)
7.Battery Trojan(USA)
8.Charger Signet
9.paint PPG
10.Electric system DeltaTech Control
11.Controller DeltaTech Control
12.Pressure valve Brevini/Riefen(Italy)
13.Spool Hydraforce(USA)
our other products:
our products cover:
1.self propelled electric scissor lifts 8m,10m,12m,14m,16m, hydraulic scissor lifts, electric motor drive scissor lifts,rough terrain scissor lifts
2.self propelled articulating boom lifts from 14m to 32m, electric motor drive,diesel engine drive
3.self propelled telescopic boom lifts from 18m to 41m, diesel engine drive
Application
For which applications is Self Propelled Scissor Lift China most useful for?
Mobile Scissor Lift are raised vertically and therefore do not offer the horizontal outreach provided by boom lifts. They are therefore ideal for worksites at height that can be accessed from directly below the worksite.
They are also ideal for jobs that require stability, such as when several workers must be lifted, as well as for jobs that require large, high capacity work platforms, for example, when tools and materials need to be lifted with the workers.
For this reason, applications for electric scissor lifts can be found in all industries where workers are required to work at height with their tools and materials. Self Propelled Scissor Lift are especially popular in the construction and maintenance industries, as well as in warehouses, storage space facilities and loading bays where goods and items are lifted up and down.
Scissor lifts can also be customised for specific applications, such as welding, electrical work and plumbing etc.
Packaging & Shipping
Packaging details:
The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requests.
Delivery details:
wihin 7 days after fully paid
Our Services
1.Pre-sale service: Free comprehensive and detailed technology consultancyand the most suitable product program.
2.In-sale service: We provide free guidance of installation and free training of operation, care and maintenance.3.After-sale service: One-year warranty service of whole machine and lifetime maintenance; and free guidance of whole machine’s maintenance.
3.After-sale service: Oneyear warranty service of whole machine and lifetime maintenance; and free guidance of whole
machine’s maintenance.
4.One year warranty for whole machines
5.Free consumable spare parts
6.Free training
7.24 hours on-line technical support
Our Advantages:
1)group company, among few chinese factories who produce scissor lifts and boom lifts only.established in 1992 ,Over 8 Years of experience for scissor lifts manufacturing
2)Very competitive pricing
3)45 standard models including scissor lifts, articulating boom lifts and telescopic boom lifts
4)Quality built & dependable products, most key components are international famous brands
5)Custom design & build capabilities,150sets of scissor lifts per month
6)Fast deliveries, usually within 7 days after fully paid, stock is available
7)Freight solutions & rates
8)Experienced exporter
9)2 year structural warranty (extended warranties available),spare parts available
10)Product support & service, have our own engineers training school to support our product,on-line guidance
11)Cooperated with big rental compaines in Beijing, Shanghai and provincial capital cities, qualities guaranteed
Exhibition & Contact:
every year we will attend both domestic fairs and overseas machinery fairs such as Bauma Fair Series, Ankomar Fair etc.
more details, pls contact:
Rhoda Wang-Sales Manager
whatsapp:+8618613739768
QQ:1838859531
wechat:W529515687
skype:rhodawang
-Wide chassis makes the lower part of the Equipment which can bear the load balance to enhance stability.
-355/55D625 Solid Tyre, JHC Self Propelled Mobile Hydraulic Scissor Platform Electric Lift Table can keep stable not only in a variety of complex conditions but also enhance the ground friction then mobile platform lift is more stable in operation and climbing easier.
-mobile platform lift The steering system adopts double oil cylinder and Hydra steering system with 40Cr steering linkage to ensure the same direction.
-Floating leveling device will start automatically when the device encountered under the condition of uneven groundto ensure the balance of equipment JHC Self Propelled Mobile Hydraulic Scissor Platform Electric Lift Table with slope of 6 degrees then strengthen the safety and adaptability.
DFGXSDFGBA
-360°continuous rotationwith 50Cr rotary support
-Emergency safety pump. mobile platform lift The operator can use emergency safety pump to fall safelywhen the equipment is working at high altitude which can not be down.
-Constant pressure pump of Danfoss USA or Rexroth Germanit avoid oil leakage caused by gear pump damage in long -term construction
-JHC Self Propelled Mobile Hydraulic Scissor Platform Electric Lift Table of centralized electric control box is used to ensure the safety of equipment operation
-Ground control console and platform control console the former has a large screen display with self diagnostic screen without connected mobile platform lift to the computerthen customers can easily understand the calibration status of equipment and parameters which is convenient debugging and testing.
-Controller of IFM Germany can enhance system stability
-Turntable safety lockto avoid the damage in the transport mobile platform lift and maintenance of arm rotation
-Swing-out engine bracket - provide the world industry closest to the engine design easy maintenance and repairs.
-Glass fiber JHC Self Propelled Mobile Hydraulic Scissor Platform Electric Lift Table steel cover make the whole equipment nice and durable
