Product Description

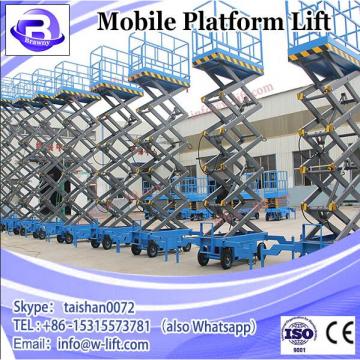

mobile small platform scissor lift
Product Description
Hydraulic scissor lift platform description:
Mobile lift platform is versatile aerial work special equipment.The it scissor mechanical structure, make the lifting platform lifting has high stability, wide operating platform and high bearing capacity, make the work high above the range is bigger, and is suitable for many people work at the same time.It makes the work high above the more efficient, safe and more security.
Note: all mobile aerial work platform can be configured mobile work platform and ac/dc power and hand pump power
Hydraulic scissor lift platform advantage:
Lifting mechanism were made with high strength manganese steel major form.
To prevent lifting platform overload safety device.
Have a safety protection valve to prevent hydraulic pipeline rupture.
Outage case emergency drop device.
Lifting platform power matching
Ac 380 v power supply (general configuration)
Ac 220 v power supply
Dc power DC24V
Manual hydraulic pump power manual/electric dual power
Ac and dc dual power.
Product parameters
Safety configuration:
1.Limit switch
2.Over load protection
3.Rubber Oil pipe:double deck steer wire
4.Velocity fuse protection.
Hydraulic scissor lift platform parameters:
Model Numbe | Rate load (kg) |
Maximum height(mm) | Minimum heigt(mm) | table size(mm) L*W | Rise time(s) | Power (kw) |
Weight(kg) | ||||||||
SJY0.45-3 | 450 | 3000 | 850 | 1400×700 | 16 | 1.1 | 400 | ||||||||
SJY0.45-5 | 450 | 5000 | 950 | 1400*850 | 43 | 1.1 | 620 | ||||||||
SJY0.3-6 | 300 | 6000 | 950 | 1800×880 | 49 | 1.1 | 650 | ||||||||
SJY0.45-6 | 450 | 6000 | 950 | 1800×880 | 54 | 1.1 | 650 | ||||||||
SJY0.45-7.5 | 450 | 7500 | 1350 | 1800×1000 | 72 | 1.5 | 1100 | ||||||||
SJY0.3-9 | 300 | 9000 | 1500 | 1800*1000 | 75 | 1.5 | 1200 | ||||||||
SJY0.45-9 | 450 | 9000 | 1550 | 1800×1000 | 80 | 1.5 | 1260 | ||||||||
SJY0.3-11 | 300 | 11000 | 1600 | 2100×1150 | 83 | 1.5 | 1320 | ||||||||
SJY0.45-11 | 450 | 11000 | 1600 | 2100×1150 | 88 | 2.2 | 1380 | ||||||||
SJY0.3-12 | 300 | 12000 | 1750 | 2450×1350 | 85 | 2.2 | 1700 | ||||||||
SJY0.45-12 | 450 | 12000 | 1600 | 2450×1350 | 90 | 3 | 1850 | ||||||||
SJY0.3-14 | 300 | 14000 | 1800 | 2450×1350 | 98 | 3 | 2200 | ||||||||
SJY0.45-14 | 450 | 14000 | 1800 | 2450×1350 | 120 | 3 | 2500 | ||||||||
SJY0.3-16 | 300 | 16000 | 1980 | 2750*1500 | 130 | 3 | 2200 |
Features&Parameters
More products for your reference:
our services
Hao Cheng service:
1. We supply ONE-STOP-SHOP solution service for logistics equipment.
2. We supply one year warranty and continuous parts supply
3. Company located in Suzhou,We also supply the ONE-STOP-SHOP logistics service for export business,Our nearest export port is Shanghai.
Company Information
OUR COMPANY INFORMATION
ABOUT US
Established in 2008, Suzhou Haocheng Logistics machinery is a professional manufacturer and exporter that is concerned with the design, development and production of logistics equipments . We are located in Suzhou City. Jiangsu province. China , with convenient transportation .....
OUR ADVANTAGE
We have over 48 employees, an annual sales figure that exceeds USD 8 million and are currently exporting 25% of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
OUR HONOR
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South Korea, American ,Thailand. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking ....
OUR CUSTOMER AND EXHIBITION:
Packaging & Shipping
Model Of Packing:
Method:Pallet,Wooden Case or Nude Packing...
HOCEN FAQ
We accept make to order,so pls tell me more detail about:
1.Max rate load(kg)
2.Max height (mm)
3.Table size (L*W)
4.Power and voltage
5. If it is possible, please send us the ddrawing, thanks!!
Contact Us
mobile small platform scissor lift
mobile small platform scissor lift
-Wide chassis makes the lower part of the Equipment which can bear the load balance to enhance stability.
-355/55D625 Solid Tyre, mobile small platform scissor lift can keep stable not only in a variety of complex conditions but also enhance the ground friction then mobile platform lift is more stable in operation and climbing easier.
-mobile platform lift The steering system adopts double oil cylinder and Hydra steering system with 40Cr steering linkage to ensure the same direction.
-Floating leveling device will start automatically when the device encountered under the condition of uneven groundto ensure the balance of equipment mobile small platform scissor lift with slope of 6 degrees then strengthen the safety and adaptability.
DFGXSDFGBA
-360°continuous rotationwith 50Cr rotary support
-Emergency safety pump. mobile platform lift The operator can use emergency safety pump to fall safelywhen the equipment is working at high altitude which can not be down.
-Constant pressure pump of Danfoss USA or Rexroth Germanit avoid oil leakage caused by gear pump damage in long -term construction
-mobile small platform scissor lift of centralized electric control box is used to ensure the safety of equipment operation
-Ground control console and platform control console the former has a large screen display with self diagnostic screen without connected mobile platform lift to the computerthen customers can easily understand the calibration status of equipment and parameters which is convenient debugging and testing.
-Controller of IFM Germany can enhance system stability
-Turntable safety lockto avoid the damage in the transport mobile platform lift and maintenance of arm rotation
-Swing-out engine bracket - provide the world industry closest to the engine design easy maintenance and repairs.
-Glass fiber mobile small platform scissor lift steel cover make the whole equipment nice and durable
